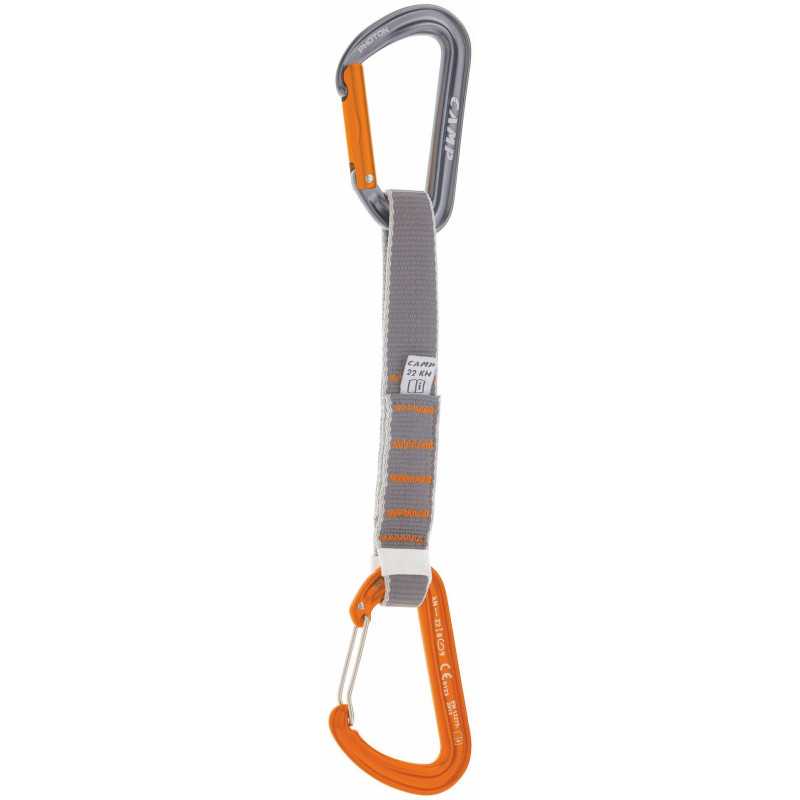

CAMP - Photon Express KS Mixte 2020 18cm, light quickdraw

CAMP - Photon Express KS Mixte 18cm

The Photon Express KS Mixte is distinguished by the combination of two top carabiners for their specific functions. The Photon straight lever is super light and equipped with a patented SphereLock geometry that optimizes the lever-carabiner play for the benefit of safety, while the Photon Wire, thanks to the perfect tensioning of the lever and the wide opening, ensures exceptional fluidity in the carabiners.

The functionality of the quickdraw is enhanced by the tapered 25 mm sling, available in two lengths (11 and 18 cm), which offers excellent grip when working the routes.

The lower connector is held in place by the integrated Karstop Evo.

Karstop Evo

Maximum stability with the integrated Karstop Evo. The quickdraws with Dyon, Photon and Nano 22 carabiners are equipped with slings equipped with a Karstop Evo carabiner.
Also in this area, the technicians of our R&D (Research and Development) Center have managed to find the way for innovation, creating a new concept TPU (thermoplastic polyurethane) karstop, integrated into the tape and therefore extremely effective, functional with all the connectors and immovable.
The Karstop Evo, whose contact surface with the carabiner is as wide as possible, equal to that of the buttonhole of the sling, is inserted into the sling itself before sewing, becoming one with it for unprecedented stability.
The particular design of the Karstop Evo also guarantees a longer duration of the sling, effectively protecting it in the event of chafing against the rock.

Features

• Super-light quickdraw ideal for rock climbing
• With Photon carabiner, straight lever for anchors and Photon Wire superlight carabiner for rope
• The Photon straight lever is equipped with a nose with patented SphereLock geometry for maximum safety
• The Photon Wire guarantees extremely fluid carabiners thanks to the perfect tension of the lever and the wide opening
• Tapered polyester webbing that guarantees excellent grip when working routes
• Available with 11 and 18 cm webbing equipped with integrated Karstop Evo carabiner

Specifications:

Carabiner Photon straight lever:

• Certification (s): CE EN 12275 type B / CE EN 566
• Major axis resistance 22 kN
• Minor axis resistance 7 kN
• Open lever resistance 9 kN
• Opening 21 mm
• Length 100 mm
• Width 60 mm

Photon Wire carabiner:

• Orange colour
• Certification (s): CE EN 12275 type B / CE EN 566
• Major axis resistance 22 kN
• Minor axis resistance 8 kN
• Open lever resistance 9 kN
• Opening 26 mm
• Length 100 mm
• Width 62 mm

Quickdraw Photon Express KS Wire 18cm:

• Webbing length: 18cm
• Webbing resistance: 22kN
• Weight: 86gr
